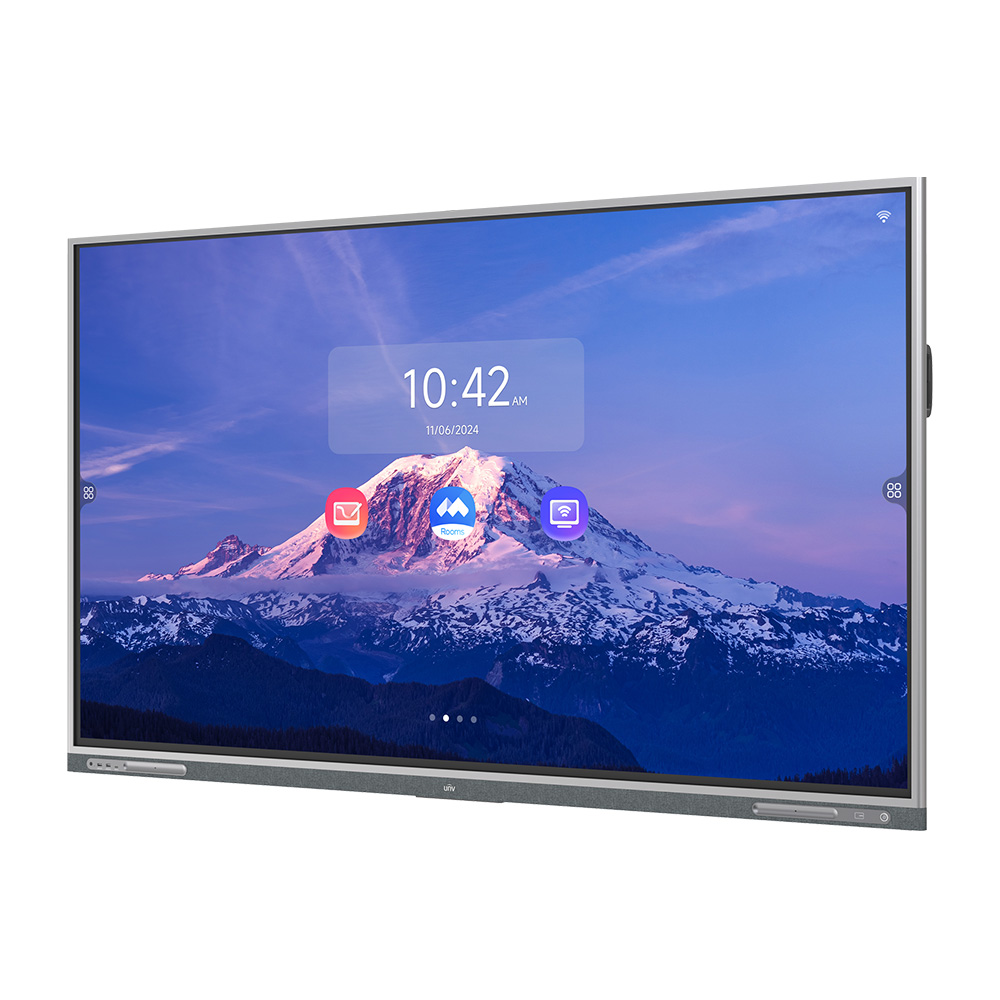

Умный интерактивный дисплей UNV MW3586-U-E2

Умный интерактивный дисплей UNV MW3586-U-E2
Model	MW3586-U-E2
Backlight	DLED
Panel Size	86"
Resolution	3840 × 2160
Display Size (mm)	1895.04 × 1065.96
Brightness (cd/m²)	350
Contrast Ratio	1200 : 1
Response Time (ms)	8
Color Support	1.07 B
Viewing Angle (H/V)	178°/178°
Glass	4mm Single-side anti-glare tempered glass
Lifespan (h)	50000
Pixel Pitch (H × V) (mm)	0.49 × 0.49
Refresh rate (Hz)	60
Color Gamut	72%
Surface Hardness	9H (7 on the Mohs scale)
Haze Value	25%
Touch Control	Up to 40-point multi-touch (WIN: 40-point, Android: 32-point)
Touch Precision (mm)	±1
Touch technology	Infrared touch
Touch Response Time (ms)	≤ 2 (frame rate > 500Hz)
CPU	4 × A76 (2.4G) and 4 × A55 (1.8G)
CPU Frequency	2.4 GHz
RAM/ROM	8GB/128GB
Operation System	Android 13.0
Video Input	2 × HDMI video input1 × DP video input1 × VGA video input1 × YPbPr video input1 × USB TypeC (Include DP)
Video Output	1 × HDMI video output1 × DP video output
Audio Input	1 × PC audio input, 3.5mm interface1 × LINE IN, 3.5mm interface1 × MIC (3.5mm & EARPHONE Shared interface)
Audio Output	1 × Earphone audio output, 3.5mm interface1 × LINE OUT, 3.5mm interface1 × SPDIF digital audio output (coaxial interface)
Other Interfaces	4 × USB3.01 × USB Type-B1 × USB Type-C1 × RS2321 × TF card slot
Network	2 × RJ45, Supports 10M/100M/1000M Base-T self-adaptive
Front Interfaces	2 × front USB3.01 × Type-C
Speaker	Left channel: 1 × treble (5W) + 1 × bass (12W)Right channel: 1 × treble (5W) + 1 × bass (12W)
Wi-Fi Configuration	Wi-Fi 6 + Wi-Fi 5, supports 2.4GHz/5GHz
Wi-Fi Performance	30m² coverage, 20m transmission distance in open space
Bluetooth Version	5.2
Bluetooth Performance	10m transmission distance in open space
Multi-Language	Supports 27 languages, including Simplified Chinese, Traditional Chinese, English, Japanese, Arabic, French, Spanish (ES-ES), Spanish (ES-MX), Portuguese (ES-ES), Portuguese (ES-MX), German, Italian, Dutch, Polish, Korean, Catalan, Galician, Vietnamese, Bulgarian, Kazakh, Russian, Ukrainian, Thai, Uzbek, Hungarian, Croatian, and Romanian
Wall Mount Hole (mm)	800 × 400
Wall Mount Screw	4-M8 screw hole
Power Supply	AC 100 to 240 V, 50/60 Hz
Overall Power Consumption (W)	≤365 (without OPS)
Standby Power Consumption (W)	<0.5
Product Dimensions (W × H × D) (mm)	1967 × 1167 × 89
Package Dimensions (W × H × D) (mm)	2117 × 1336 × 247
Operating Temperature	0 to 50°C
Weight (kg)	Net weight: 68.0Gross weight: 79.2
Operating Humidity	10% to 90% (non-condensing)
Storage Temperature	-20 to 60°C
Storage Humidity	0% to 95% (non-condensing)
Accessories Included	1 × Power Cable, 2 × Touch Pen, 1 × Quick Guide, 1 × Infrared Remote Control, 1 × Wall Mount Bracket
Certification	CE-EMC, CE-RED, CB/LVD, FCC, FCC-ID
